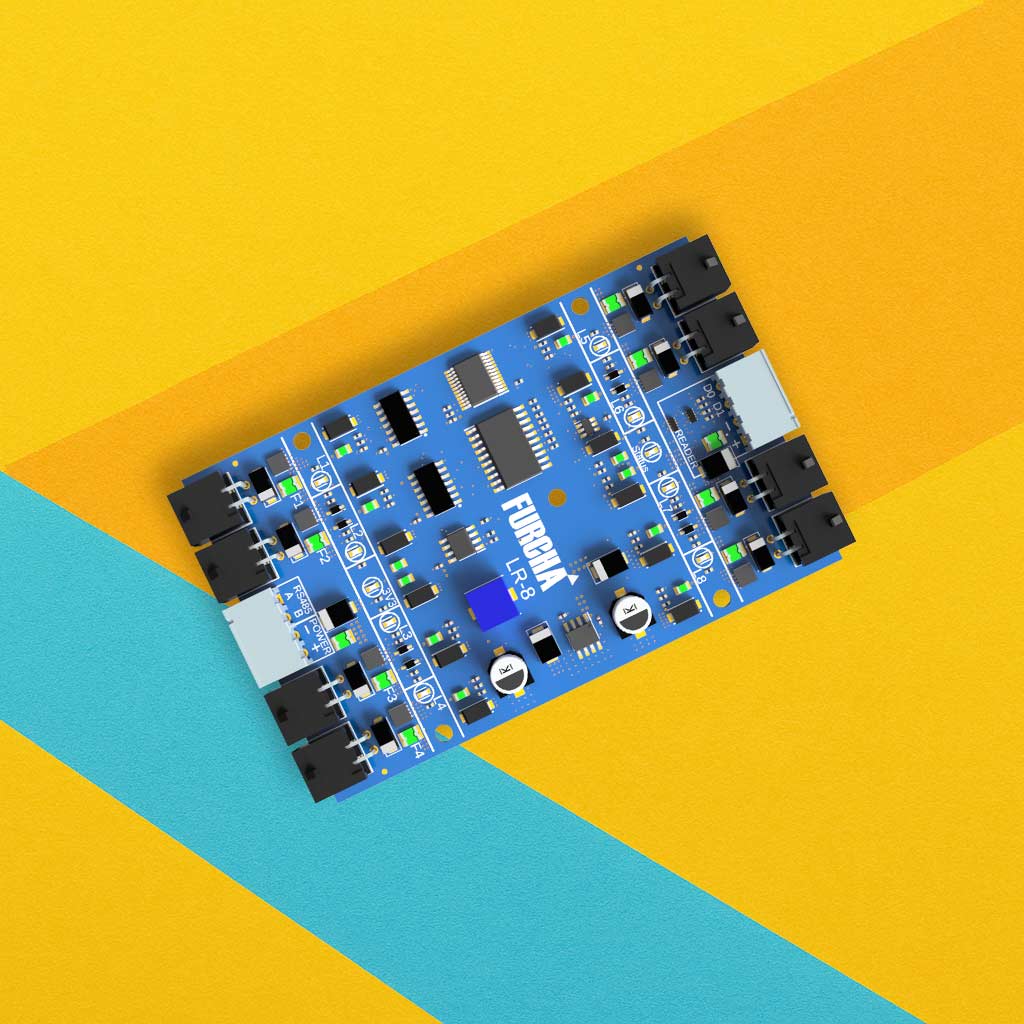

LR-8 Locker Module

The LR-8 Locker Module is a submodule that is installed on a BD-3 Body Module. It allows connection of up to eight locker locks and transmits their status data to the system, enabling real-time monitoring of each lock’s state.

Features list

  • 8 lock outputs

  • 8 lock status inputs

  • 1 x Wiegand input

  • 4 x OSDP reader inputs

    Specification

    • Power Supply: 12–24 VDC
    • Dimensions: 104 mm × 64 mm × 13 mm
    • Connection to Body Module: Mezzanine Connector
    • Wiegand Readers:
      • 1× RFID/PIN Reader
      • Supported Protocol: Wiegand (26–66 bit)
    • OSDP Readers:
      • 4 × OSDP V2 Readers
    •  Locks:
      • 8 × lock outputs (12/24 VDC)
      • 8 × status inputs
      • Connectors: Molex Micro-Fit 3.0
    • Indicators:
      • Status LEDs (Green / Red)
    • Operating Temperature: 0°C to +60°C
    • Storage Temperature: –40°C to +80°C
