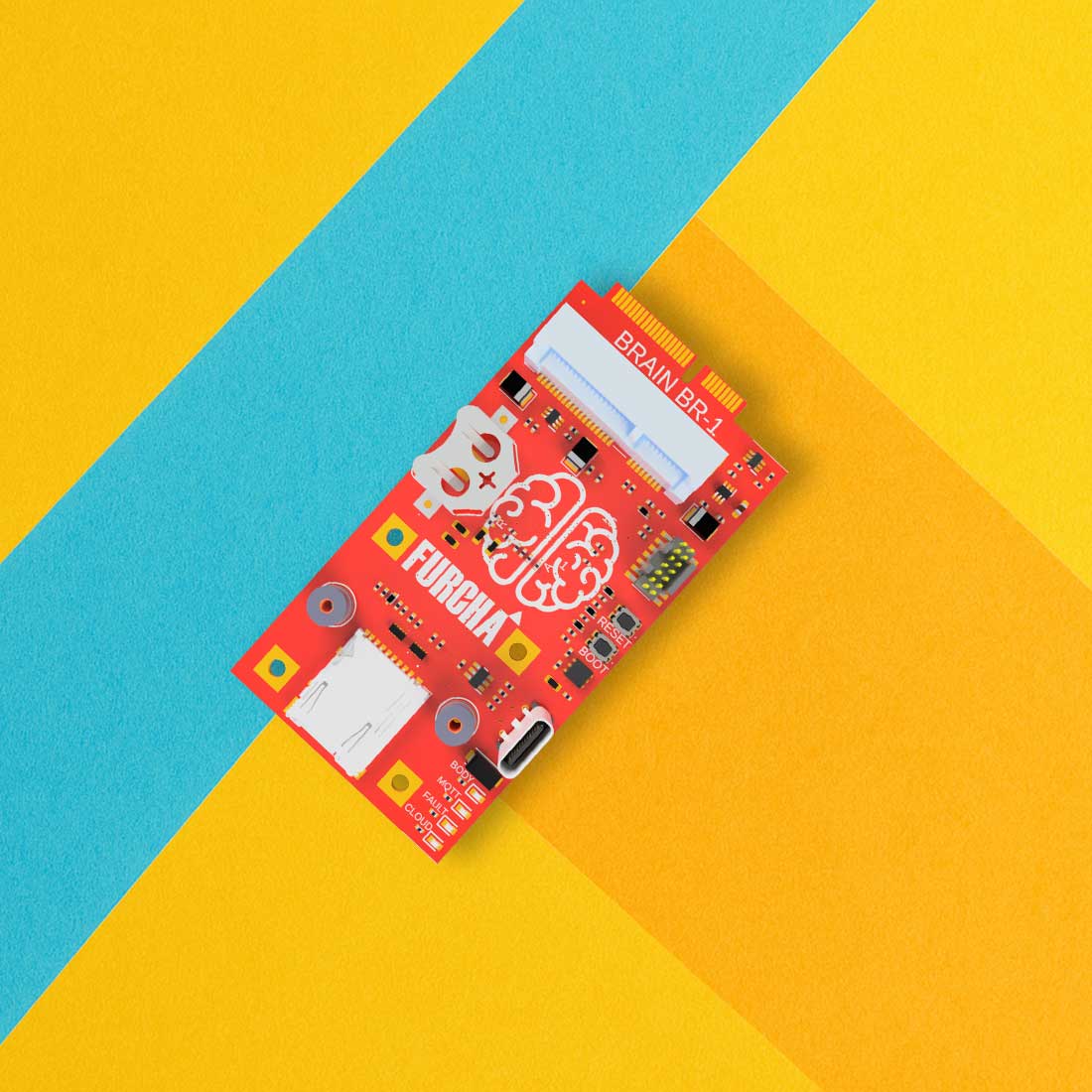

BR-1 Brain Module

The Brain Module is the central component of the entire module chain, acting as the "brain" of the system. It coordinates the operation of all other modules — such as Body Modules, which host various sub-modules tailored for specific purposes like locker modules.
It also ensures seamless interaction with the FURCHA World Cloud based user interface.
With a built-in web server, the system can be easily configured and managed directly through a browser. The module runs on a Real-Time Operating System (RTOS), delivering high reliability and stable performance even under critical workloads.

Features list

  • Up to 500,000 users Flash memory

  • Built-in web server

  • SQL Database

  • Encrypted MQTT communication

  • Micro SD Card for system backup

  • Real Time Clock (RTC)

  • Updatable firmware

  • USB Type-C

    Specification

    • Power Supply: 3.3 VDC
    • Dimensions: 194 mm × 83.5 mm × 19.6 mm
    • Communication Options (via mPCIe):
      • Ethernet Module
      • Wi-Fi Module
    • Encryption Standard: AES
    • Network Protocol: TCP
    • Connection to Body Module: mPCIe
    • Real-Time Clock: Offline-capable
    • Operation Modes: Offline / Online
    • Flash Memory:
      • Up to 500,000 users
      • Up to 1,000,000 event logs
    • SD Card: Supported
    • Indicators:
      • Status LEDs (Green / Red / Blue / Yellow)
      • Beeper
    • System Integrations:
      • Embedded Web Server
      • MQTT Client
      • FreeRTOS
      • NTP Client
      • SQL Database
    • Interfaces: Web Interface
    • Operating Temperature: 0°C to +60°C
    • Storage Temperature: –40°C to +80°C
