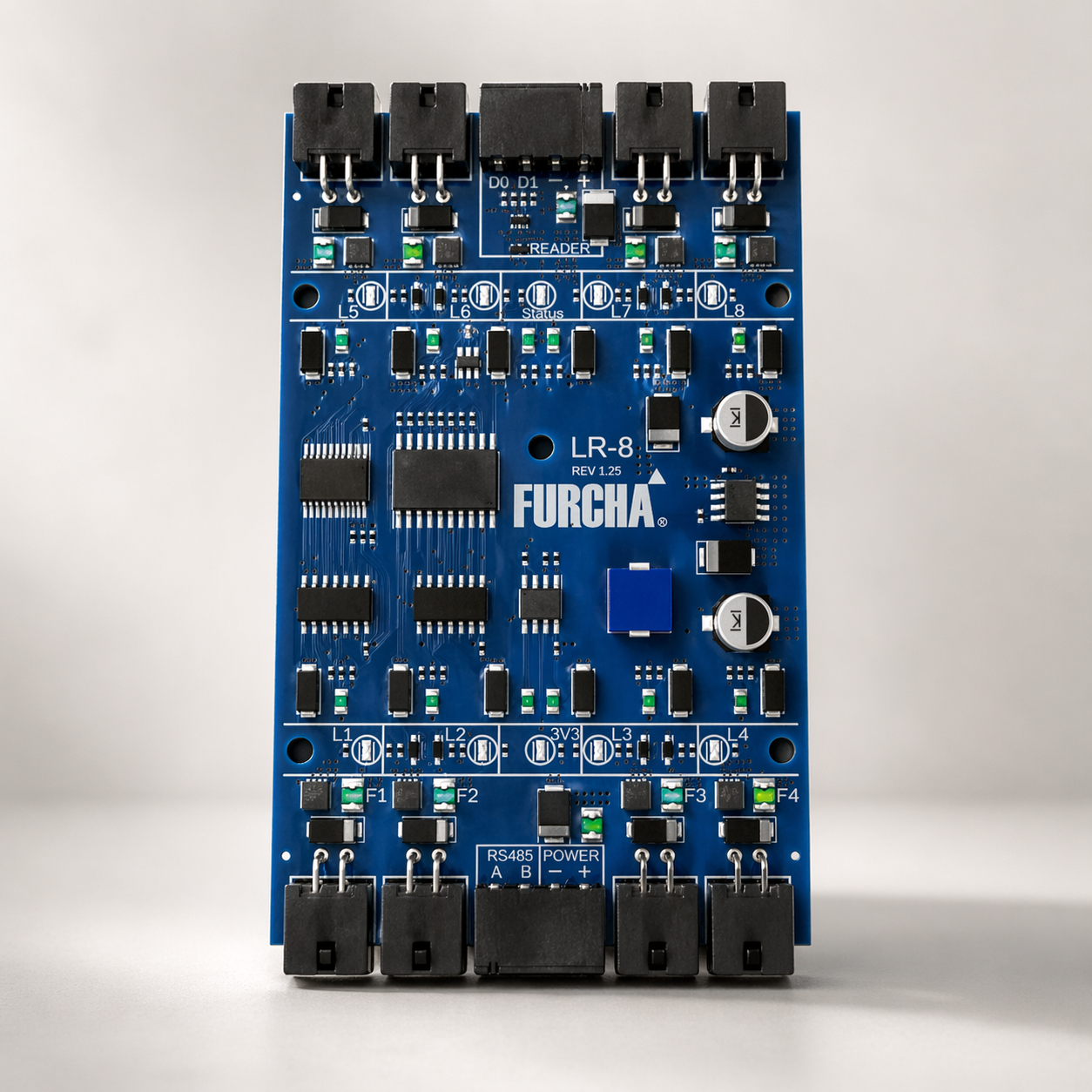

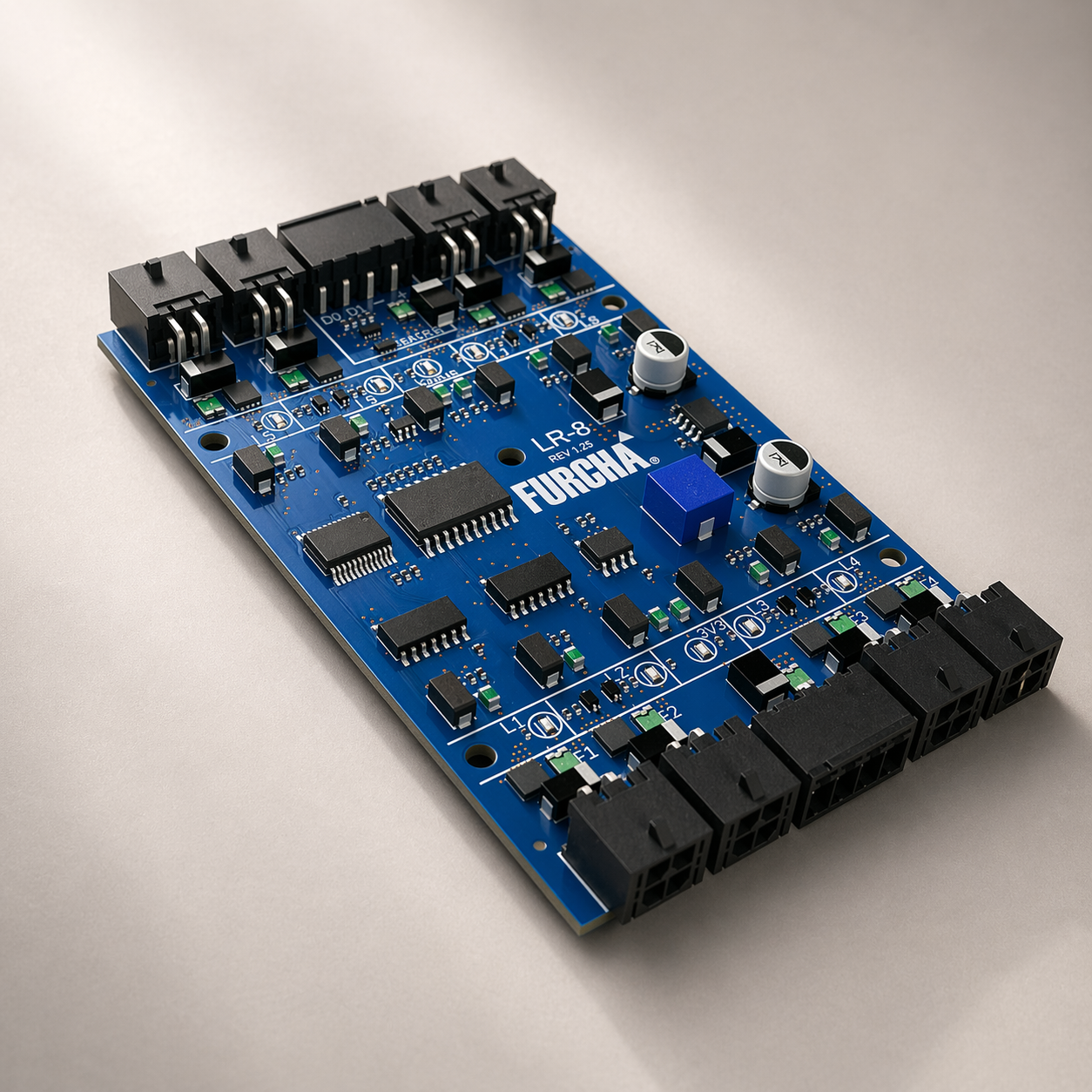

LR-8 Locker Module
The LR-8 Locker Module is a sub-module designed for installation on the BD-3 Body Module. It supports up to eight 12-24V locker locks and one Wiegand or up to eight OSDP readers.
The module transmits lock status data to the system, enabling real-time control and monitoring of each locker.
Features
8 lock outputs
8 lock status inputs
1 x Wiegand input
4 x OSDP reader inputs
Specification
- Power Supply: 12–24 VDC
- Dimensions: 104 mm × 64 mm × 13 mm
- Connection to Body Module: Mezzanine Connector
- Wiegand Readers:
- 1× RFID/PIN Reader
- Supported Protocol: Wiegand (26–66 bit)
- OSDP Readers:
- 8 × OSDP V2 Readers
- Locks:
- 8 × lock outputs (12/24 VDC)
- 8 × status inputs
- Connectors: Molex Micro-Fit 3.0
- Indicators:
- Status LEDs (Green / Red)
- Operating Temperature: 0°C to +60°C
- Storage Temperature: –40°C to +80°C
