BR-1 Brain Module

The Brain Module is the central component of the entire module chain, acting as the intelligent core of the system. It coordinates the operation of its host Body Module, along with up to 31 Body Modules on the data line and their respective sub-modules, including door, locker, and other control modules.

It also ensures seamless integration with the FURCHA World cloud-based user interface, enabling centralized monitoring and control.

With a built-in web server, the system can be easily configured and managed directly through a standard web browser. Running on a Real-Time Operating System (RTOS), the module delivers high reliability and stable performance, even in demanding and mission-critical environments.

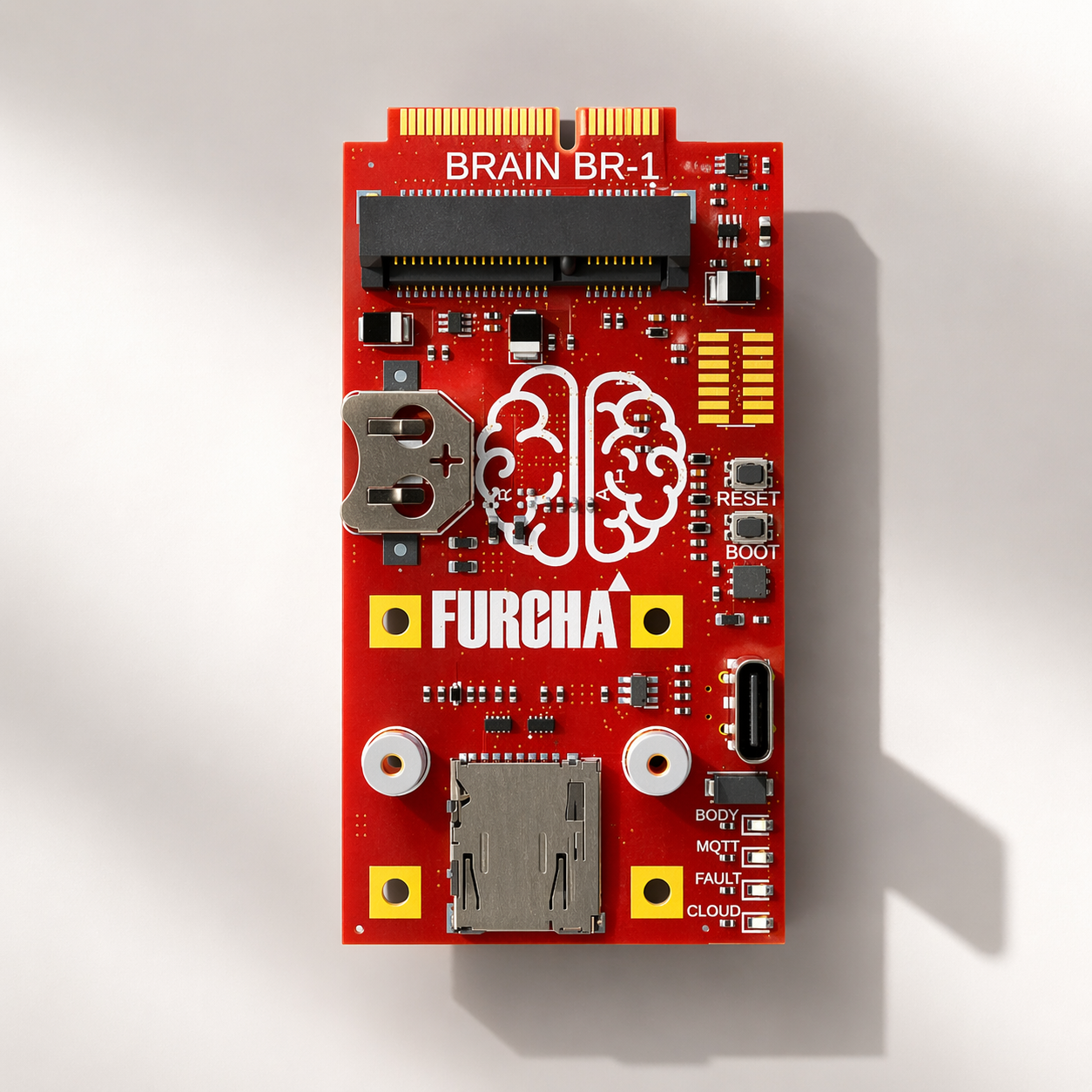

BR-1 Brain Module

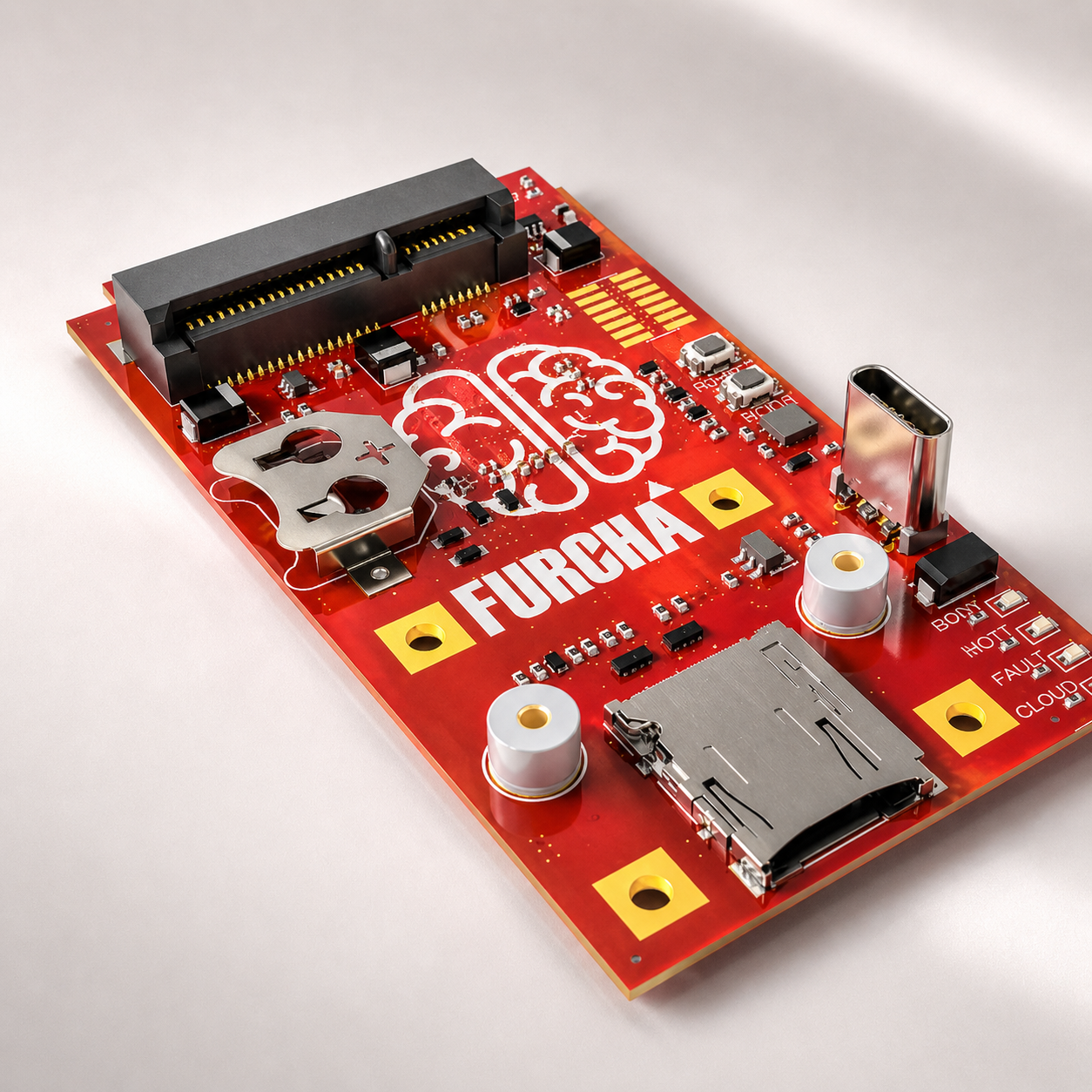

BR-1 Brain Module - Image 2

Features

  • Up to 200,000 users Flash memory

  • Built-in web server

  • SQL Database

  • Encrypted MQTT communication

  • Micro SD Card for system backup

  • Real Time Clock (RTC)

  • Updatable firmware

  • USB Type-C

    Specification

    • Power Supply: 3.3 VDC
    • Dimensions: 194 mm × 83.5 mm × 19.6 mm
    • Communication Options (via mPCIe):
      • Ethernet Module
      • Wi-Fi Module
    • Encryption Standard: AES
    • Network Protocol: TCP
    • Connection to Body Module: mPCIe
    • Real-Time Clock: Offline-capable
    • Operation Modes: Offline / Online
    • Flash Memory:
      • Up to 200,000 users
      • Up to 500,000 event logs
    • SD Card: Data Line Back-Up
    • Indicators:
      • Status LEDs (Green / Red / Blue / Yellow)
      • Beeper
    • System Integrations:
      • Embedded Web Server
      • MQTT Client
      • FreeRTOS
      • NTP Client
      • SQL Database
    • Interfaces: Web Interface
    • Operating Temperature: 0°C to +60°C
    • Storage Temperature: –40°C to +80°C

    The Brain Module is the central component of the entire module chain, acting as the intelligent core of the system. It coordinates the operation of its host Body Module, along with up to 31 Body Modules on the data line and their respective sub-modules, including door, locker, and other control modules.

    It also ensures seamless integration with the FURCHA World cloud-based user interface, enabling centralized monitoring and control.

    With a built-in web server, the system can be easily configured and managed directly through a standard web browser. Running on a Real-Time Operating System (RTOS), the module delivers high reliability and stable performance, even in demanding and mission-critical environments.
