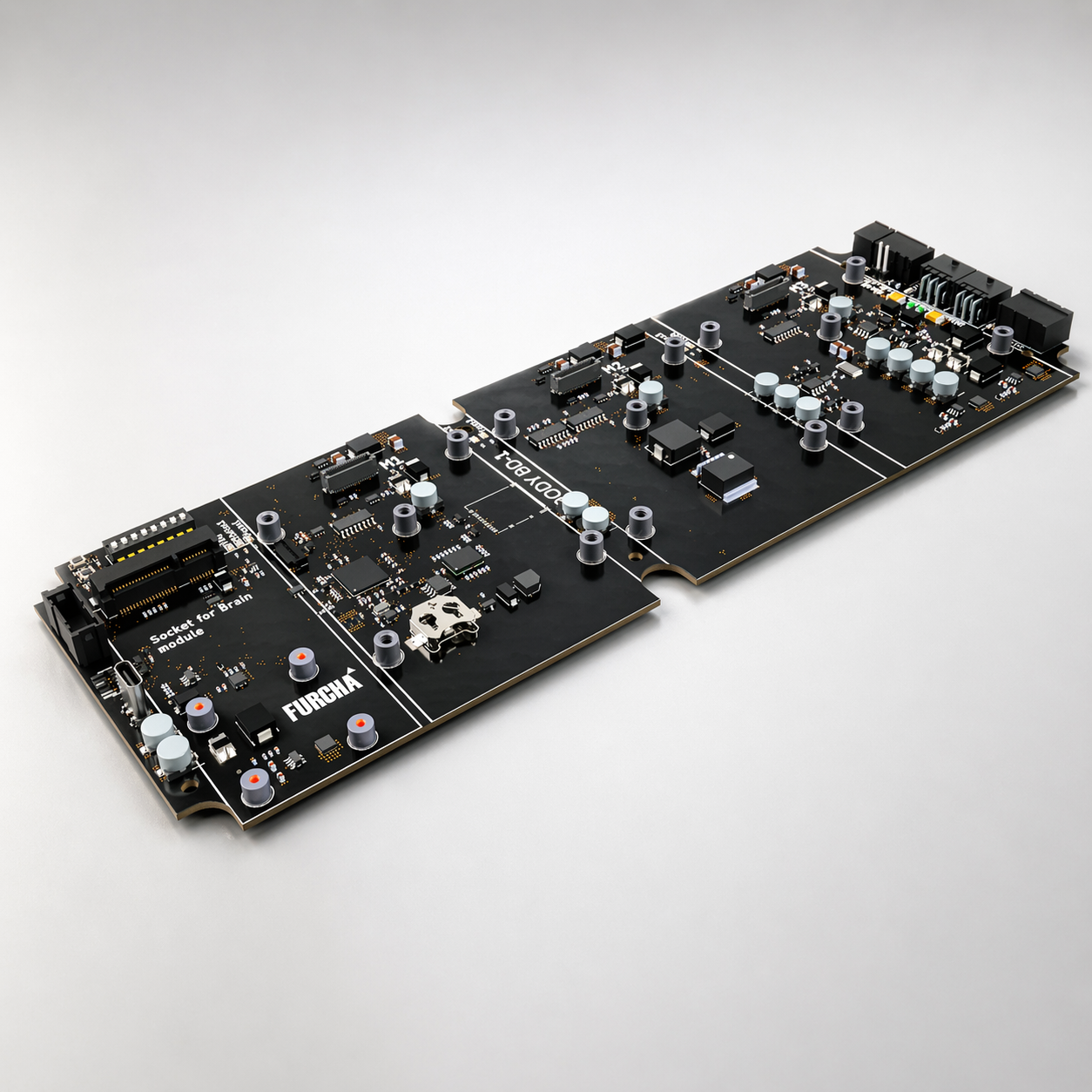

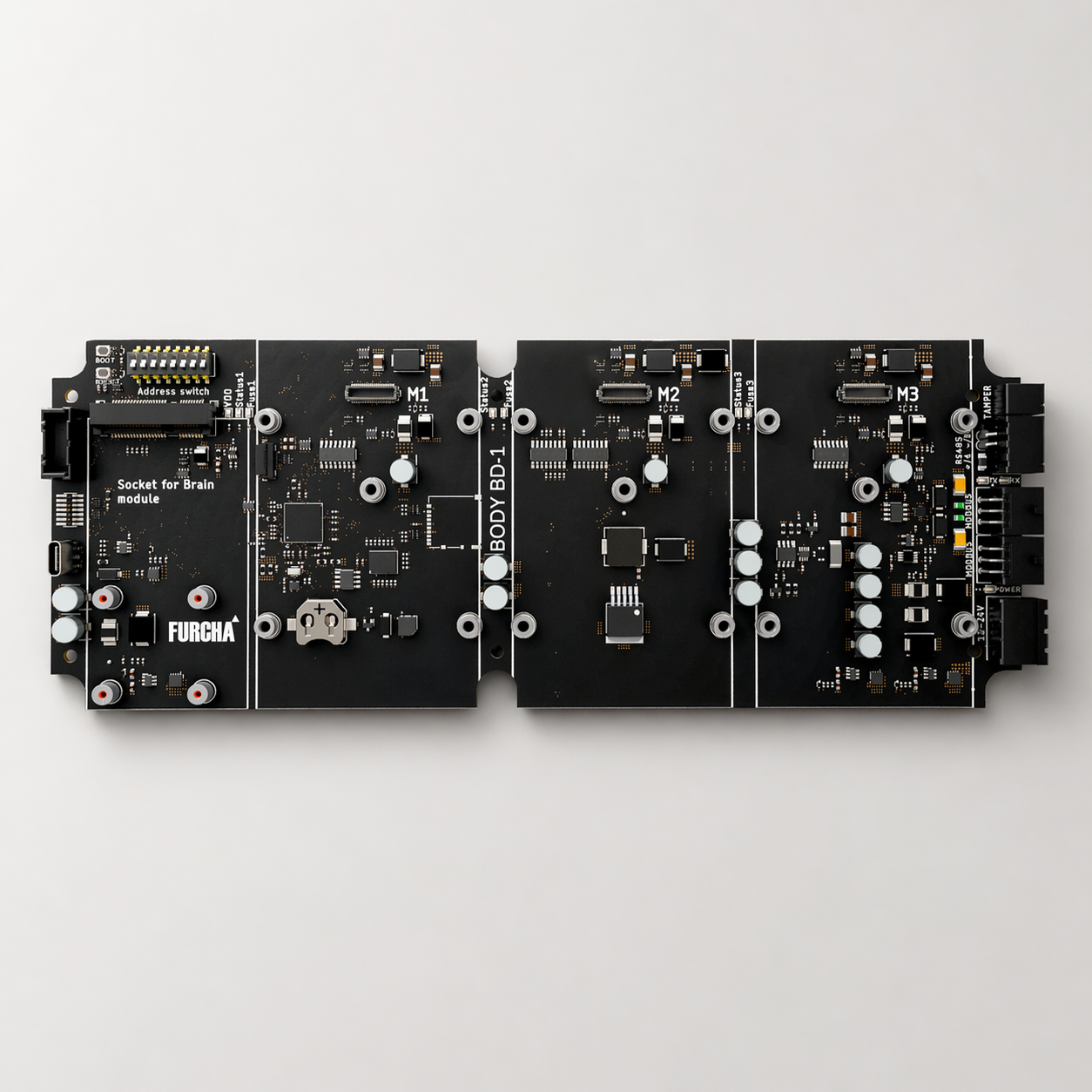

BD-1 Body Module
The BD-1 Body Module serves as the base of the modular controller. It is designed to house the Brain Module — the central intelligent control unit of the data line — along with up to three sub-modules.
Each sub-module is dedicated to a specific function. For example, the DR-2 Door Module manages access points such as doors, barriers, and elevators, while the LR-8 Locker Module enables control of up to eight lockers. Sub-modules can be combined and configured to meet the specific requirements of each project.
Up to 31 BD-1 Body Modules can be connected within a single data line and centrally managed by the unit equipped with the Brain Module. This architecture enables seamless scalability while maintaining centralized, intelligent control.
Together, these components form a unified controller network, where each BD-1 acts as a building block in a robust, scalable, and fully integrated system.
Features
Up to 3 different sub-modules
SQL Database
Up to 1.5 km RS485 data line
12/24V DC power supply
Real Time Clock (RTC)
Updatable firmware
USB Type-C
Specification
- Power Supply: 12–24 VDC
- Dimensions: 276 mm × 100 mm × 13 mm
- Communication Interface: RS485
- Encryption Standard: AES
- Real-Time Clock: Offline-capable
- Operation Modes: Offline / Online
- Flash Memory:
- Up to 200,000 users
- Up to 500,000 event logs
- Supported Sub Modules: 3 pcs
- Interfaces:
- 1× mPCIe connector for Brain Module
- 3× Mezzanine connectors for Sub Modules
- Indicators:
- Status LEDs (Green / Red / Yellow)
- Beeper
-
- Addressing: 8-bit address switch
- Tamper Detection: Supported
- Operating Temperature: 0°C to +60°C
- Storage Temperature: –40°C to +80°C
Optional / Additional Modules
-
- Top information panel with RGB LED indication
- Brain Module
- Ethernet Module
- Sub Modules:
- Access Control Module
- Locker Module
- Security Module
- Automation Module
- Battery Module
- Output Relay Module
